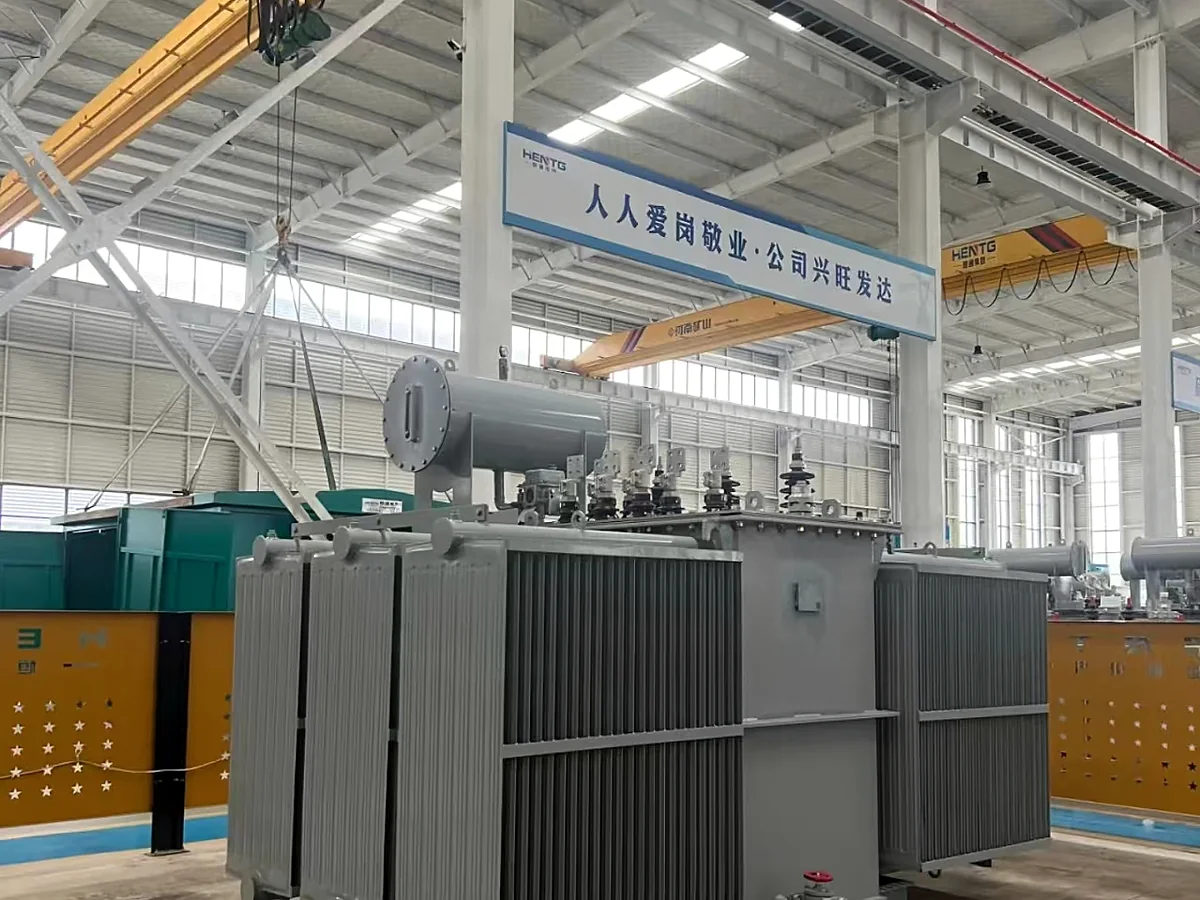

33/35 kV Oil-Immersed Power Transformer
Project-engineered transformer options for grid interconnection and high-capacity industrial systems.
OVERVIEW
Configured for the actual electrical system.
The coordination process starts with system voltage, MVA duty, insulation level, impedance, losses, cooling, tap range, transport limitations and site conditions. Quotations are compared on an aligned technical schedule before a manufacturing partner is selected.
Typical ranges on this page are for preliminary project selection only. Final design, materials, performance, tests, certificates and supply scope are subject to the signed project technical agreement and the selected manufacturing partner.
TECHNICAL DATA
Typical configuration range.
Final values, losses, dimensions and accessories are confirmed in the project proposal.
| Parameter | Specification |
|---|---|
| Typical primary voltage | 33 / 35 / 38.5 kV |
| Typical capacity | 2-40 MVA |
| Typical secondary voltage | 6.3 / 6.6 / 10.5 / 11 kV |
| Frequency | 50 / 60 Hz |
| Cooling | ONAN / ONAF options |
| Tap changer | Off-circuit / on-load options |
| Specification status | Typical reference; final values per signed project technical agreement |
CONFIGURATION INPUTS
The data that shapes the proposal.
01Voltage & capacity
02Frequency & phase
03Vector group & impedance
04Loss & temperature-rise target
05Site environment
06Applicable standard
PROJECT WORKFLOW
From specification to dispatch.
01Requirement review
02Technical proposal
03Partner manufacturing
04Inspection / FAT
05Packing & delivery
