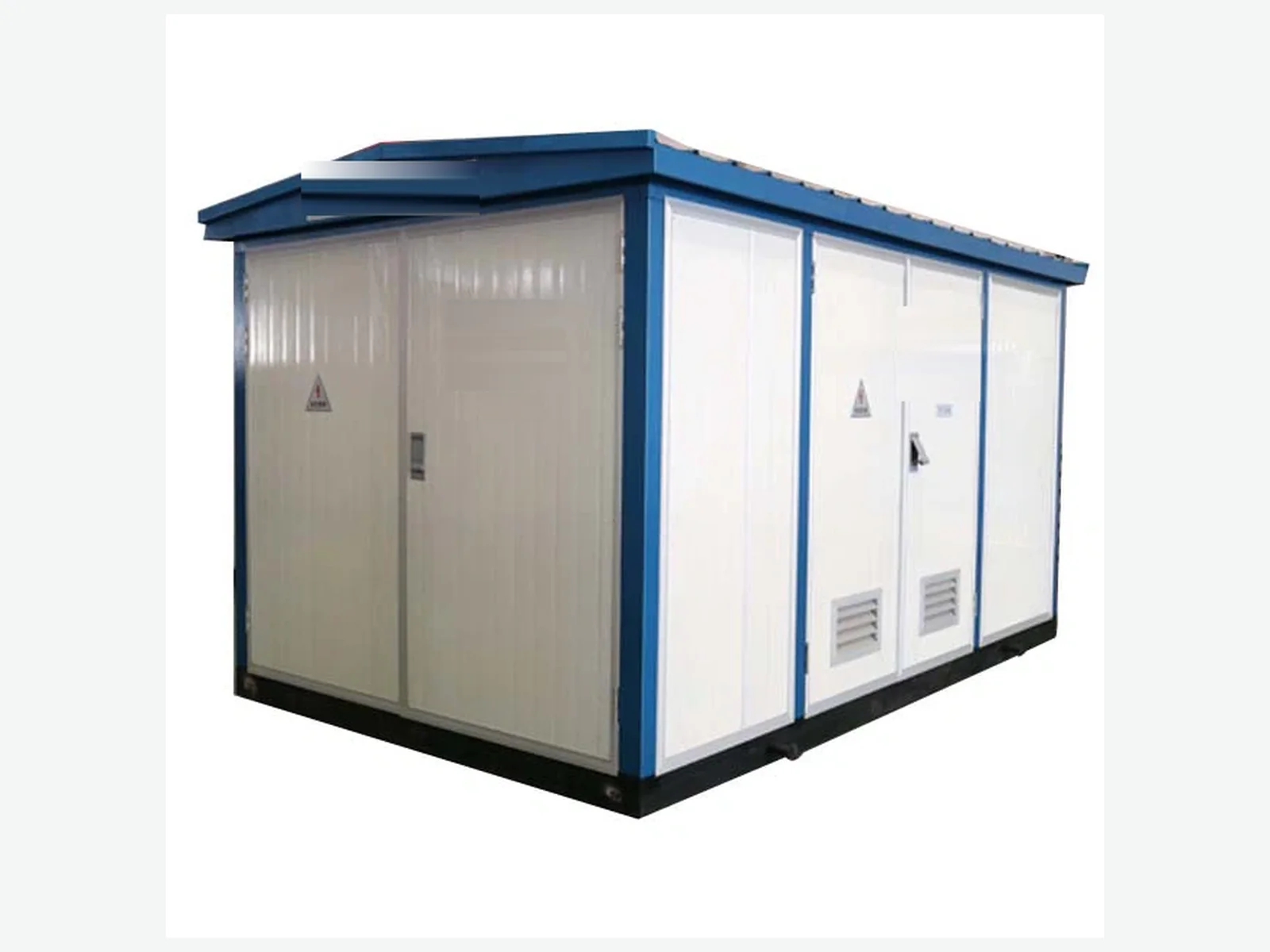

Prefabricated Compact Substation
Integrated substation configuration coordinated across transformer, switchgear, protection and enclosure suppliers.
OVERVIEW
Configured for the actual electrical system.
The single-line diagram, transformer rating, protection, metering, auxiliary supply, enclosure, cable entry and site layout are reviewed as one package. Factory assembly and acceptance inspection can be coordinated with the selected partner.
Typical ranges on this page are for preliminary project selection only. Final design, materials, performance, tests, certificates and supply scope are subject to the signed project technical agreement and the selected manufacturing partner.
TECHNICAL DATA
Typical configuration range.
Final values, losses, dimensions and accessories are confirmed in the project proposal.
| Parameter | Specification |
|---|---|
| Typical HV system | 6-35 kV |
| Typical transformer capacity | 315-3400 kVA |
| LV system | 0.4 / 0.69 kV or project-specific |
| Configuration | HV + transformer + LV compartments |
| Enclosure | Outdoor project-specific |
| Reference standard | IEC 62271-202 or project requirement |
| Specification status | Typical reference; final values per signed project technical agreement |
CONFIGURATION INPUTS
The data that shapes the proposal.
01Voltage & capacity
02Frequency & phase
03Vector group & impedance
04Loss & temperature-rise target
05Site environment
06Applicable standard
PROJECT WORKFLOW
From specification to dispatch.
01Requirement review
02Technical proposal
03Partner manufacturing
04Inspection / FAT
05Packing & delivery
