Step-up package coordinated for solar and wind collection systems and destination grid requirements.
Input voltage, collection voltage, transformer duty, switchgear, protection, metering, auxiliary supply, enclosure, environmental conditions and grid-code tests are aligned before order placement.
Typical ranges on this page are for preliminary project selection only. Final design, materials, performance, tests, certificates and supply scope are subject to the signed project technical agreement and the selected manufacturing partner.
Final values, losses, dimensions and accessories are confirmed in the project proposal.
| Parameter | Specification |
|---|---|
| Typical LV input | 0.4-1.14 kV |
| Typical MV output | 6-35 kV |
| Typical capacity | 500 kVA-10 MVA |
| Applications | Solar / wind generation |
| Package | Transformer + MV equipment + auxiliaries |
| Reference standard | IEC / IEEE / local project requirement |
| Specification status | Typical reference; final values per signed project technical agreement |
Designed for renewable energy applications, the new energy step-up box type substation integrates transformer, high voltage switchgear, and low voltage equipment into one compact unit. It provides efficient voltage conversion, reliable operation, and safe power transmission for solar, wind, and energy storage projects.
Designed for solar, wind power, and energy storage projects, this step-up box type substation integrates transformer, high voltage switchgear, and low voltage equipment into a compact and reliable unit. It provides efficient voltage boosting, safe power transmission, and stable operation for renewable energy systems.

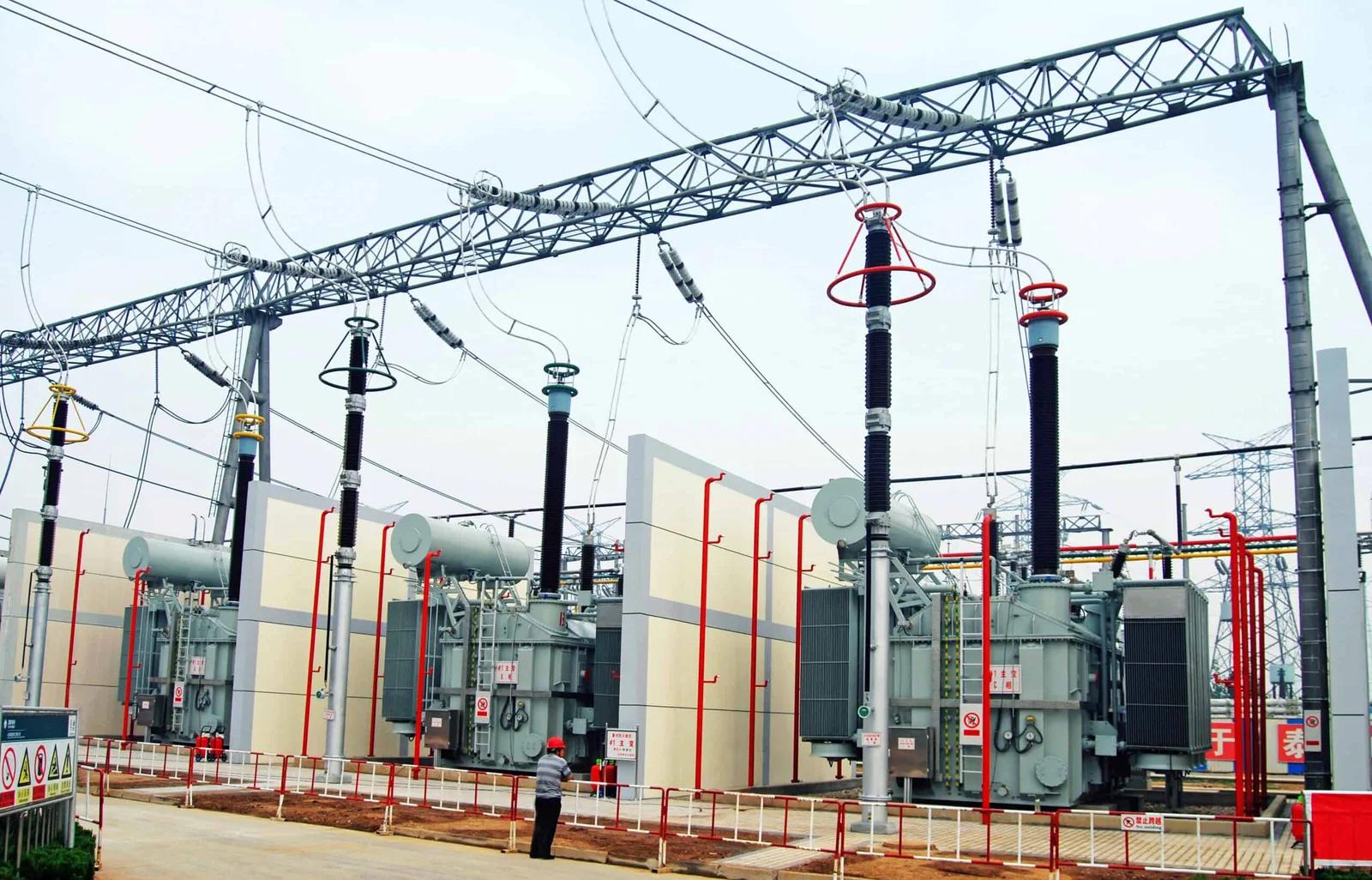

Integrated step-up transformer system designed for solar, wind and energy storage projects, combining transformer, switchgear and protection equipment to efficiently increase voltage for grid connection.
